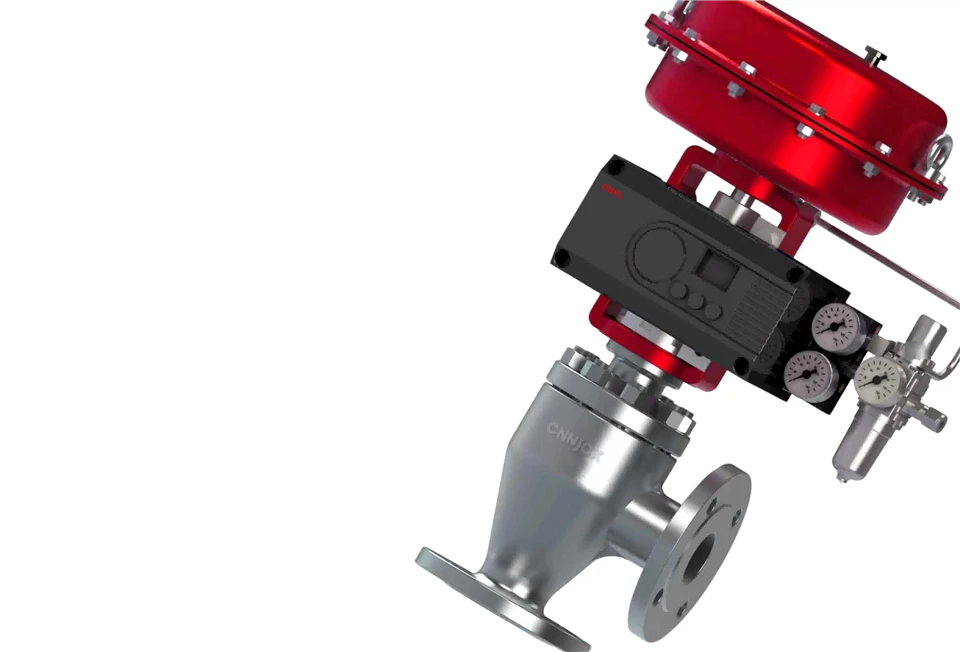

ANGLE CONTROL VALVE

The angle-type control valve features an angle-style body, with the medium flowing in from the bottom and out from the side. Its flow path is simple, with low flow resistance and no dead zones. The valve plug and seat have a self-cleaning function, making it particularly suitable for special working conditions containing suspended solids, solid particles, slurry, coal slurry and other similar media.

Send Inquiry

Description

Technical Parameters

● Operating Temperature:

○ Standard Bonnet: -29°C ~ 230°C

○ High Temperature Bonnet: -29°C ~ 530°C

○ Low Temperature Bonnet: -46°C ~ 230°C

○ Cryogenic Bonnet: -196°C ~ 180°C

○ Bellows Seal Bonnet: -101°C ~ 530°C

● Sealing Type: Hard Seal

● Leakage Class: Class IV, Class V, Class VI

● Flow Characteristics: Equal Percentage, Linear, Quick Opening, Segmented

● Packing Type: V-type PTFE, Graphite, V-type PTFE + Graphite, Low-Leakage Packing, Vacuum Packing
