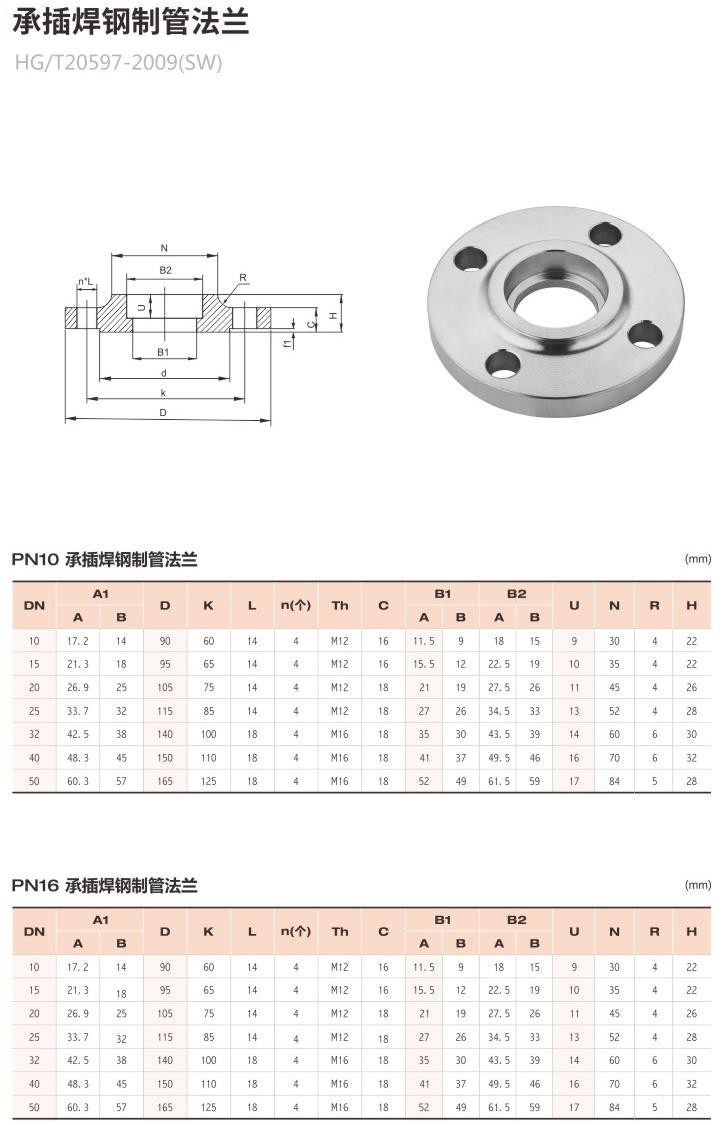

Product Name：Alloy Steel DIN Socket Weld Flange
The neck flange has good rigidity, small welding deformation and good sealing performance, and can be used for the pressure of 1.0~10.0MPa. The B-flange for containers is also a socket weld flange for applications where sealing requirements are high. When designing, the socket weld flange can be checked by
integral flange. 1. Flat welding: only the outer layer shall be welded, and the inner layer shall not be welded; it is generally used in medium and low pressure pipelines, and the nominal pressure of the pipeline shall be less than 2.5MPa. There are three kinds of sealing surfaces of flat welding flange, namely smooth type, concave convex type and mortise groove type. Among them, the smooth type is the most widely used, and the price is affordable and the cost performance is high.
2. Butt welding: the inner and outer layers of the flange shall be welded, generally used in medium and high pressure pipelines, with the nominal pressure between 0.25 and 2.5MPa. The sealing surface of butt welding flange connection is concave convex type, and the installation is relatively complex, so the labor cost, installation method and auxiliary material cost are relatively high.
3. Socket welding: generally, it is used in pipelines with nominal pressure less than or equal to 10.0MPa and nominal diameter less than or equal to 40mm.
4. Loose sleeve: it is generally used in pipes with low pressure but corrosive medium, so this kind of flange has strong corrosion resistance and most of the materials are stainless steel.
This kind of connection is mainly used for the connection of cast iron pipe, rubber lined pipe, non-ferrous metal pipe and flange valve. The connection of process equipment and flange is also flange connection.
Hot Tags: alloy steel din socket weld flange, China alloy steel din socket weld flange manufacturers, sprinkler system ball valve, flange 10k, compression toilet flange, adjustable toilet flange, aluminum pipe flange, customizing pressure vessel flange specifications
Q: Do you have the ability of fast delivery?
A: For orders with common specifications and a total of no more than 10 tons,we can ship within15 days.
Q: What is your payment method?
A: 1.T/T.30% advance payment,Pay the balance before shipment.
2.L/C.100% sight letter of credit.
Q: Which port do you ship from?
A: Tianjin seaport.
Q: Can I have a sample order for stainless steel Flanges products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days;
